Geotechnical Excavation Monitoring in Barrie, Ontario

Barrie’s subsurface is dominated by glaciolacustrine deposits from Lake Algonquin, leaving behind thick sequences of soft, compressible clay. As the city expands its downtown core along Kempenfelt Bay, excavations routinely hit the water table at depths as shallow as 1.8 metres. The geotechnical excavation monitoring program deployed here focuses on capturing lateral movements in shoring walls and pore pressure buildup before they trigger instability. Combining inclinometers, piezometers, and automated total stations allows the team to track deformation against the NBCC lateral earth pressure models. For deeper cuts near the waterfront, integrating data from CPT testing refines the soil stratigraphy used to calibrate monitoring thresholds. The goal is straightforward: catch the warning signs the moment they appear in the data stream, long before a crack shows up in the adjacent street or a buried utility shifts out of alignment.

Monitoring turns an excavation from a blind cut into an instrumented procedure where every millimetre of movement has a timestamp and a threshold.

Process and scope

A Barrie winter adds a layer of complexity that standard monitoring plans often overlook. Frozen ground near the surface masks real settlement patterns, while spring thaw sends a pulse of water into the excavation, changing the effective stress regime overnight. The instrumentation layout accounts for this seasonal swing by placing multi-point extensometers deep enough to bypass the frost line, typically below 1.5 metres. An automated data acquisition system transmits readings every four hours, flagging any movement that exceeds the predefined thresholds set during the design phase. When the excavation approaches an existing structure—common on Dunlop Street—vibration monitors are added to the perimeter to track construction-induced ground motion. In cases where the shoring design relies on grouted tiebacks, the monitoring plan is paired with anchor testing to verify the load transfer assumptions as the cut advances, ensuring the restraint capacity matches the design intent through every stage of the dig.

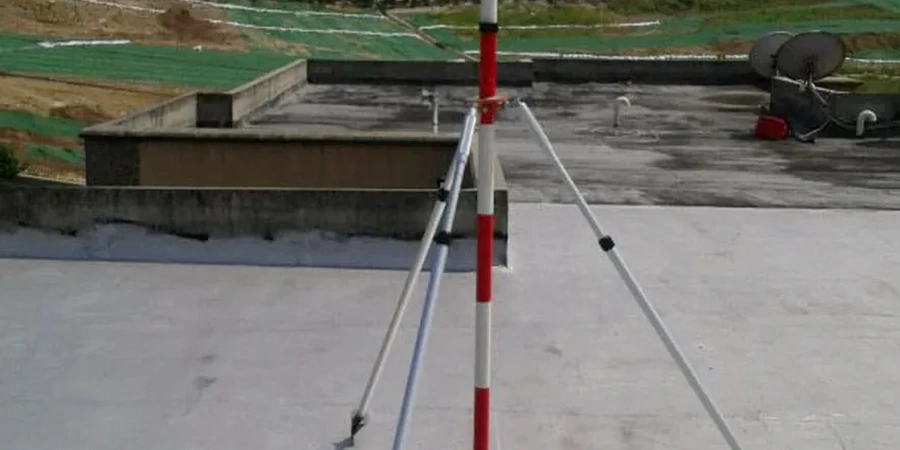

Geotechnical Excavation Monitoring in Barrie, Ontario

Site-specific factors

Soil conditions shift noticeably across Barrie’s geography. The downtown waterfront sits on soft silty clay that creeps under load, while the south-end subdivisions near Ardagh Bluffs rest on denser till with scattered boulders. A monitoring plan calibrated for one area fails completely in the other. The bigger risk on the clay side is time-dependent deformation: a shoring wall can stand perfectly for two weeks and then begin to rotate when a sustained rainstorm raises the groundwater level by half a metre. On the till side, the hazard is abrupt—a boulder rolling out of a cut face or a lens of saturated sand triggering a local collapse. The instrumentation package must match the failure mode, which is why the team selects piezometers and inclinometers for the clay zones and supplements them with crack monitors and visual inspection triggers where till dominates. No single sensor tells the whole story; the interpretation of the combined dataset is what separates a nuisance alarm from a genuine structural threat.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.org

Regulatory framework

NBCC 2015 (Division B, Part 4), CSA A23.3-14, ASTM D7299-20 (Inclinometer Verification), ASTM D653-21 (Soil and Rock Terminology)

Related services

Deep Excavation Instrumentation Package

Combines inclinometers, vibrating wire piezometers, and automated total station prisms for cuts exceeding 4.5 metres. Includes weekly interpretive reports that overlay measured displacement on the predicted envelope from the shoring design, with real-time alerts when movement approaches the NBCC action limit.

Adjacent Structure Protection Monitoring

Deploys tiltmeters, crack gauges, and geodetic survey points on buildings within the zone of influence. Pre-construction condition surveys establish baselines, and vibration monitoring per CSA S832 guidelines protects heritage masonry structures common in Barrie’s older wards.

Typical parameters

Parameter	Typical value
Inclinometer precision	±0.25 mm/m
Piezometer range	0–175 kPa
Total station accuracy	±1 mm + 1 ppm
Reporting interval	4 hours (automated)
Vibration threshold (PPV)	5 mm/s (residential)
Frost line monitoring depth	>1.5 m local standard

Frequently asked questions

How much does excavation monitoring cost in Barrie?

A typical monitoring package runs between CA$1,120 and CA$3,260, depending on the number of instruments, the monitoring duration, and whether real-time telemetry is required. A basic inclinometer-only setup for a short-term trench sits at the lower end, while a full deep excavation array with automated reporting across multiple sensor types falls toward the upper range.

What triggers an alarm in the monitoring system?

Thresholds are set during design based on the calculated allowable movement for the shoring system and any adjacent structures. Typical triggers include a lateral displacement exceeding 25 mm or a rate of change faster than 3 mm per day. Pore pressure alarms activate when the piezometer records a deviation of more than 15% from the baseline hydrostatic profile. Every alarm generates an immediate notification to the site supervisor and the reviewing engineer.

How long does monitoring continue after excavation reaches final depth?

Monitoring continues through the entire construction sequence until the permanent structure provides lateral restraint to the excavation faces. For a typical basement excavation in downtown Barrie, this means readings continue during footing placement, foundation wall construction, and backfilling—often six to ten weeks beyond the final cut. The instrumentation is only demobilized once the data confirms that movements have stabilized below the long-term creep threshold.
