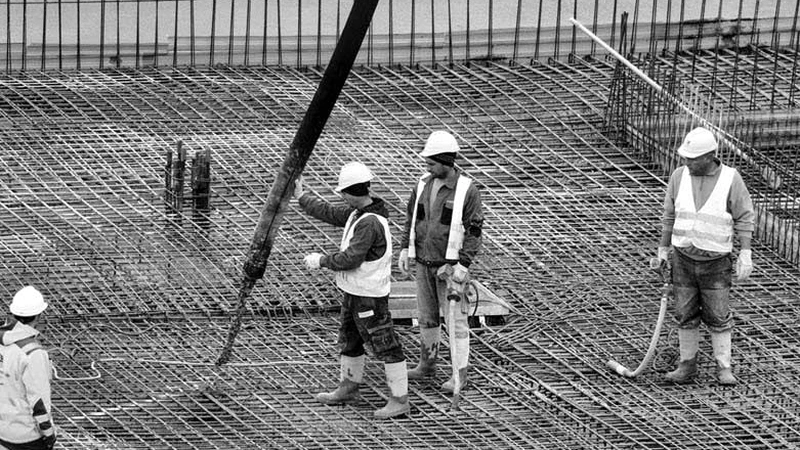

The Kempenfelt Bay shoreline left Barrie with a complex soil profile. Glacial Lake Algonquin deposited thick sequences of silt and clay that can reach 20 meters deep in the city's east end. Where those clays meet sandy till, differential settlement becomes the primary risk for any slab-on-grade or mat system. In our lab, we run consolidation and strength tests on Shelby tube samples pulled from the upper 8 meters because that's where the overconsolidated crust sits. For larger footprints near the waterfront we often cross-check the soil modulus with in-situ permeability data from the same borehole, since drainage conditions directly affect the long-term settlement rate under a rigid mat. A well-designed raft foundation distributes column loads evenly, but only if the geotechnical model captures the transition between the stiff upper till and the softer lacustrine clay below.
A mat foundation in Barrie lives or dies by the consolidation parameters of the upper clay crust. Get the mv wrong and the whole slab tilts.
Process and scope
Site-specific factors
Barrie sits at 252 meters above sea level, but the real number that matters is the depth to the water table. In spring melt it rises to within 1.5 meters of grade in the Allandale area. A raft foundation placed on saturated silt without proper sub-slab drainage will heave during freeze-thaw cycles and settle unevenly when the soil consolidates under load. We have seen floor slabs crack along grid lines where the modulus contrast between two soil lenses was ignored. The 2014 flood event along Kidd's Creek showed how fast surface water can saturate the near-surface silts. Our consolidation reports flag the preconsolidation pressure explicitly because if the structural load plus the seasonal groundwater uplift exceeds that value, the settlement switches from elastic to plastic and the mat foundation loses its uniform support. We always recommend a capillary break and perimeter drain when the foundation level sits within the frost-susceptible zone.
Regulatory framework
NBCC 2020 (National Building Code of Canada), CSA A23.3-19 (Design of Concrete Structures), ASTM D2435 (One-Dimensional Consolidation Properties of Soils)
Related services
Consolidation and Settlement Analysis
We run incremental consolidation tests on undisturbed Shelby tube samples to determine compression index (Cc), recompression index (Cr), and preconsolidation pressure (Pc). The output calculates total and differential settlement under the proposed mat footprint.
Subgrade Modulus and Bearing Verification
Using triaxial and direct shear data, we derive the modulus of subgrade reaction (ks) for Barrie's glacial till and clay units. We also provide the allowable bearing pressure at the mat invert, factoring in the long-term groundwater condition.
Typical parameters
Frequently asked questions
How much does a raft foundation design study cost in Barrie?
For a standard single-family or light commercial lot in Barrie, the geotechnical investigation and lab testing package for a raft foundation design typically ranges from CA$1,570 to CA$5,110. The final number depends on the number of boreholes, the depth of sampling into the glacial till, and the specific lab tests required. A site with deeper clay pockets near the waterfront will need more Shelby tube samples and consolidation tests than a site on dense till in the south end.
What soil conditions in Barrie make a raft foundation necessary?
The thick glaciolacustrine silt and clay deposits across much of Barrie, especially east of Highway 400, produce moderate to high compressibility. When the bearing stratum varies in thickness or stiffness over short distances, isolated footings would experience differential settlement. A rigid mat foundation bridges those soft zones and keeps the structure level. We see this pattern frequently in the Holly and Painswick neighborhoods.
How long does the lab testing take for a mat foundation analysis?
Consolidation tests on Barrie's silty clay typically require 7 to 10 days per sample due to the low permeability and the need for full secondary compression readings. A complete package including triaxial, Atterberg, and grain-size distribution usually takes 3 to 4 weeks from sample delivery to final report. We can expedite the consolidation phase if the project schedule is tight.
Do you test the frost susceptibility of the soil for the raft foundation?
Yes, we run grain-size analyses specifically looking at the percentage of fines passing the 0.075 mm sieve. Soils with more than 3% fines by weight are considered frost-susceptible. In Barrie, where the frost depth reaches 1.5 meters, we always check this for mat foundations because ice lens formation beneath the slab can lift the entire structure unevenly if the sub-base is not properly drained.
